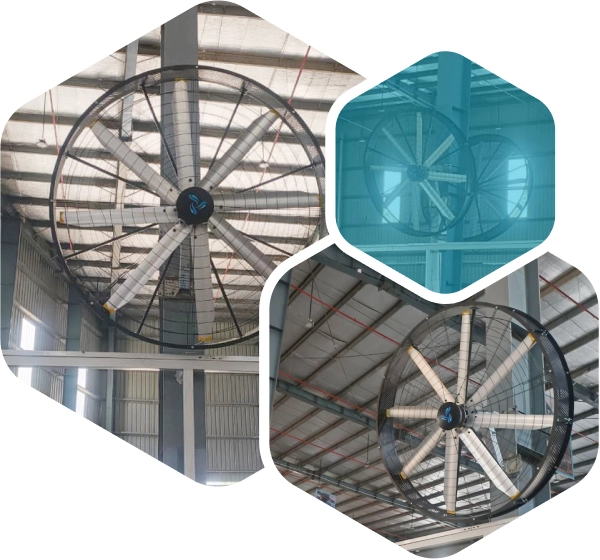

Industrial Wall Mounted Fan

Industrial Wall Mounted Fan


Industrial Wall Mounted Fan

An Industrial Wall Fan, also known as a Heavy-Duty Wall Fan or Wall-Mounted Fan, is specifically designed to provide powerful and efficient airflow in various industrial settings. These fans are mounted on walls and columns, saving valuable floor space while effectively circulating air to maintain optimal working conditions. The Industrial Wall-Mounted Fan ensures reliable ventilation and is ideal for use as a commercial big wall fan in warehouses, factories, workshops, gyms, and other large spaces. Whether referred to as a commercial wall fan unit or a Heavy-Duty Industrial Wall Fan, these fans deliver exceptional performance and durability in demanding environments.

Product Attributions
  • Space-Saving Design
  • Easy Installation
  • Efficiency >95%
  • Lowest Sound Levels
  • Adjustable Angles
  • Helps to remove sour smells
  • Maintenance-free
Benefits
Useful in areas with limited floor space
Useful in areas with limited floor space
Aerofoil blade and winglet combinations for maximum air movement
Aerofoil blade and winglet combinations for maximum air movement
Robust, reliable, and extraordinary quality
Robust, reliable, and extraordinary quality
PMSM Direct Drive Motor
PMSM Direct Drive Motor

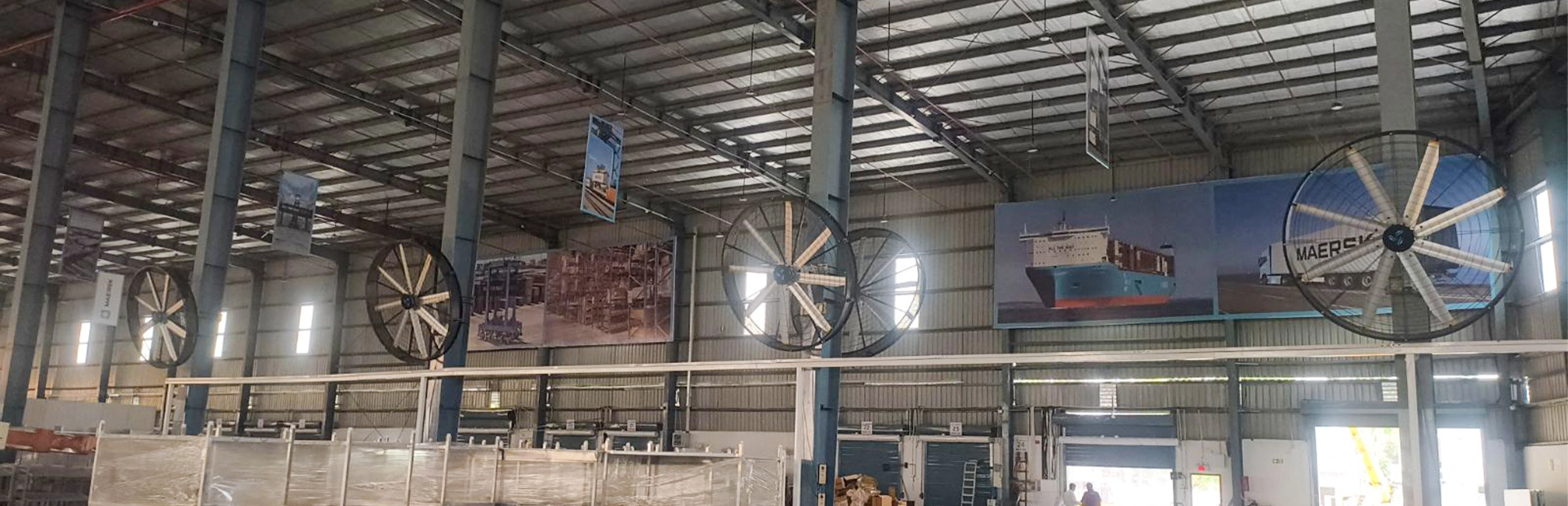

Why Industrial Wall Mount Fan?


In industrial settings, proper ventilation is crucial for comfort and efficiency. KRISSVENT Industrial Wall Fans provide powerful airflow while saving valuable floor space. By dispersing heat and stagnant air, they maintain a cooler, more comfortable environment, boosting worker productivity and reducing heat-related issues. Built to withstand demanding conditions, these fans ensure long-lasting performance in factories, warehouses, gyms, and large commercial spaces, enhancing air circulation and promoting a healthier workspace.

Industrial Wall Fan Products

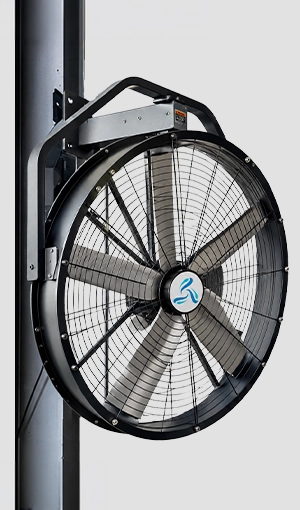

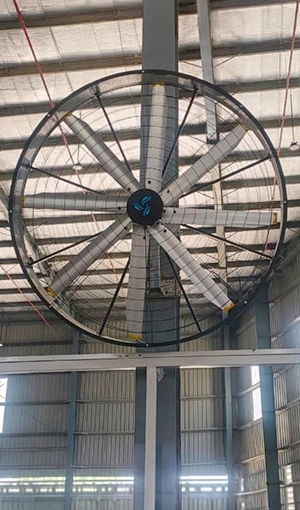

Permanent Magnet Synchronous Motor Drives Industrial Wall Fan

Model: DB-2.0E

Fan Diameter: 2.0m

Weight: 96Kg

Number of Blades: 8, 6063T6

Speed: 240RPM(Frequency Conversion Stepless Speed Regulation)

Voltage: 220V/380V 50HZ

Rated Power: 0.4KW

Air Volume: 6636m3/min

Noise: ≤38 DB

KRISSVENT PMSM Industrial Wall Fan​


Large Fan Diameter
Large Fan Diameter

Fan diameter of 2.0m for extensive air coverage.

High Air Volume
High Air Volume

Delivers an impressive air volume of 6636m3/min.

Energy-Efficient Motor
Energy-Efficient Motor

PMSM direct drive motor with a first-class energy efficiency design.

Variable Speed Control
Variable Speed Control

Speed range of 5-240RPM with stepless speed regulation for versatile use.

Low Noise Operation
Low Noise Operation

Operates quietly with noise levels ≤ 38dB.

Durable Blades
Durable Blades

Made from high-strength aviation aluminium-magnesium alloy 6063T6, ensuring durability and optimal performance.

Technical Specifications​


Model Size(Dia) Motor KW/HP RMP Air Volume (CMM) Coverage (SQ.M) Total Weight (Kg) dBa*
KVS – 7Va 7.3M (24ft) 1.5 / 2.0 0-55 15,500 1,700 122 38
KVS – 7V 7.3M (24ft) 1.1 / 1.5 0-55 13,000 1,500 111 38
KVS – 6V 6.1M (20ft) 1.1 / 1.5 0-60 11,500 1,000 103 38
KVS – 5V 5.5M (18ft) 1.1 / 1.5 0-70 11,000 900 99 55
KVS – 4V 4.9M (16ft) 0.75 / 1.0 0-85 10,000 600 85 55
KVS – 3.7V 3.7M (12ft) 0.37 / 0.5 0-85 5,000 380 58 55
KVS – 3V 3.0M (10ft) 0.37 / 0.5 0-115 4,000 250 55 55

FAQs


An Industrial Wall Fan is a heavy-duty fan designed to provide powerful air circulation in large spaces such as warehouses, factories, and commercial areas. These fans are typically mounted on walls to save floor space while delivering robust airflow.
An Industrial Wall Fan is designed to circulate air within a space, providing ventilation and cooling by moving large volumes of air. In contrast, an Industrial Exhaust Fan is specifically designed to remove stale air, fumes, and contaminants from a space, improving air quality by expelling air to the outside. While wall fans are typically used for cooling and air circulation, exhaust fans are used for ventilation and maintaining a clean environment.
Heavy-duty Wall Fans offer several benefits, including powerful air circulation, improved ventilation, and enhanced comfort in large spaces. They are designed to be durable and can operate efficiently in tough industrial environments.
While Industrial Wall Fans are primarily designed for commercial and industrial use, they can also be used at home if you require strong airflow in large spaces such as garages or workshops. However, their size and power might be excessive for typical residential settings.
Installing an Industrial Wall-Mounted Fan involves securely mounting the fan bracket to the wall, ensuring it can support the fan’s weight. It is important to follow the manufacturer’s instructions and, if necessary, consult a professional to ensure proper installation and safety.
The price of Industrial Wall Fans varies based on factors such as size, brand, and features. On average, you can expect to find Industrial Wall Fans priced between ₹5,000 and ₹20,000. For the most accurate pricing, please visit our Industrial Wall Fan price page or contact us directly.
When choosing a Heavy-Duty Industrial Wall Fan, consider features such as blade size, air delivery capacity, durability, ease of installation, and energy efficiency. Additional features like adjustable speed settings and oscillation can also be beneficial.
Yes, Heavy-Duty Wall Mount Fans are designed to perform well in various industrial environments, including factories, warehouses, and workshops. Their robust construction ensures they can withstand harsh conditions and provide consistent airflow.
Regular maintenance of your Industrial Wall Fan includes cleaning the blades and grill, checking for loose screws or bolts, and lubricating the motor if necessary. It’s important to follow the industrial fan manufacturer’s maintenance guidelines to ensure optimal performance and longevity.
