Industrial HVLS Fans Manufacturer in India
HVLS Fan

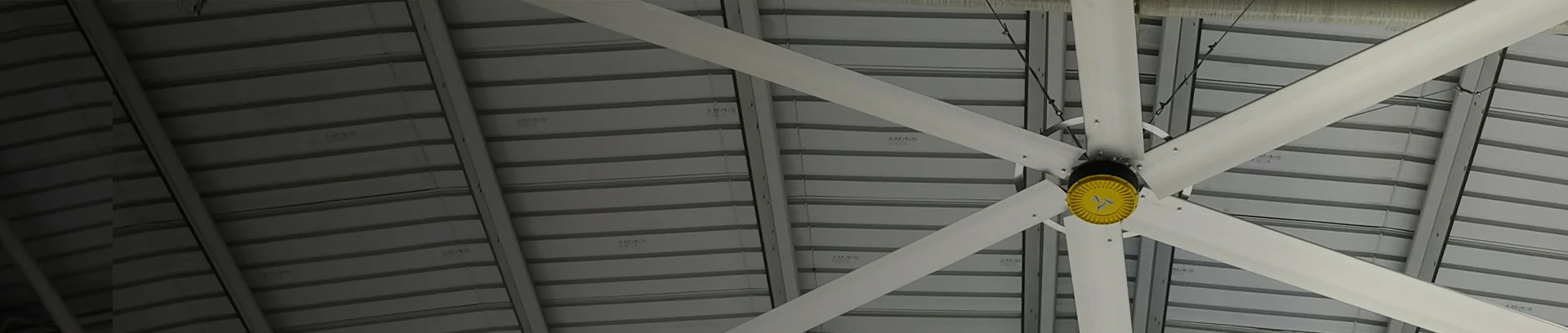

An HVLS fan is a high-volume, low-speed ceiling fan greater than seven feet in diameter. Its large size stirs up and moves enormous amounts of air in all directions. The increased air circulation replaces hot, humid air with drier air.
Benefits
Why Choose HVLS Fans?
Industrial facilities consist of moisture due to various reasons that affect human & as well as machine productivity.
KRISSVENT HVLS fans help reduce heat & maintain a cool & calm environment, which adds years to the machine life and comfort for the humans.
HVLS Fans play a vital role in cooling a facility by maintaining continuous airflow.
HVLS Fan Products
Big Industrial HVLS Fan
Model: DX 7.3
Size: 24 ft
No of Blades: 6
Motor: 1.5 KW / 2HP
Max Speed: 62 RPM
Max Air Volume: 14,800 m3/min
Fit for Installation Height(M): 8 ~ 20
Net Weight: 106 kg
Noise Level dB(A): <= 38
Large HVLS Fan
Model: DX 7.3 G E
Size: 24 ft
No of Blades: 8
Motor: 1.8 KW / 2.4HP
Max Speed: 55 RPM
Max Air Volume: 17,930 m3/min
Fit for Installation Height(M): 8 ~ 30
Net Weight: 110 kg
Noise Level dB(A): <= 38
Medium HVLS Fan
Model: DX 7.3 M
Size: 24 ft
No of Blades: 5
Motor: 1.5 KW / 2HP
Max Speed: 65 RPM
Max Air Volume: 13,200 m3/min
Fit for Installation Height(M): 8 ~ 11
Net Weight: 100 kg
Noise Level dB(A): <= 38
Big HVLS Fan
Model: DX 6.1
Size: 20 ft
No of Blades: 6
Motor: 1 KW / 1.35HP
Max Speed: 65 RPM
Max Air Volume: 12,900 m3/min
Fit for Installation Height(M): 6 ~ 15
Net Weight: 94 kg
Noise Level dB(A): <= 38
Industrial HVLS Fan
Model: DX 5.5
Size: 18 ft
No of Blades: 6
Motor: 0.75 KW / 1HP
Max Speed: 70 RPM
Max Air Volume: 12,200 m3/min
Fit for Installation Height(M): 5 ~ 11
Net Weight: 72 kg
Noise Level dB(A): <= 38
HVLS Fan
Model: DX 5.0
Size: 16 ft
No of Blades: 6
Motor: 0.75 KW / 1HP
Max Speed: 80 RPM
Max Air Volume: 11,500 m3/min
Fit for Installation Height(M): 5 ~ 11
Net Weight: 68 kg
Noise Level dB(A): <= 38
HVLS Industrial Ceiling Fan
Model: DX 5.0D
Size: 16 ft
No of Blades: 5
Motor: 0.5 KW / 0.7HP
Max Speed: 90 RPM
Max Air Volume: 9,700 m3/min
Fit for Installation Height(M): 4 ~ 9
Net Weight: 60 kg
Noise Level dB(A): <= 38
High Volume Low Speed Fan
Model: DX 3.6 E
Size: 12 ft
No of Blades: 8
Motor: 0.3 KW / 0.4HP
Max Speed: 90 RPM
Max Air Volume: 7,320 m3/min
Fit for Installation Height(M): 4 ~ 8
Net Weight: 42 kg
Noise Level dB(A): <= 38
HVLS Ceiling Fan
Model: DX 3.0 E
Size: 10 ft
No of Blades: 8
Motor: 0.3 KW / 0.4HP
Max Speed: 110 RPM
Max Air Volume: 6,450 m3/min
Fit for Installation Height(M): 4 ~ 8
Net Weight: 38 kg
Noise Level dB(A): <= 38
Small HVLS Fan
Model: DX 2.4 E
Size: 8 ft
No of Blades: 8
Motor: 0.3 KW / 0.4HP
Max Speed: 120 RPM
Max Air Volume: 5,320 m3/min
Fit for Installation Height(M): 4 ~ 8
Net Weight: 34 kg
Noise Level dB(A): <= 38
Find Installations Near You
Select your state to see all cities where KRISSVENT fans are installed.
KRISSVENT installations in Andhra Pradesh (9 cities)
KRISSVENT installations in Arunachal Pradesh (3 cities)
KRISSVENT installations in Assam (2 cities)
KRISSVENT installations in Andaman & Nicobar Islands (1 city)
KRISSVENT installations in Thimphu (1 city)
KRISSVENT installations in Bihar (2 cities)
KRISSVENT installations in Chhattisgarh (1 city)
KRISSVENT installations in Chandigarh (1 city)
KRISSVENT installations in Daman & Diu (1 city)
KRISSVENT installations in Dadra and Nagar Haveli (1 city)
KRISSVENT installations in Delhi (1 city)
KRISSVENT installations in Goa (4 cities)
KRISSVENT installations in Gujarat (38 cities)
KRISSVENT installations in Himachal Pradesh (5 cities)
KRISSVENT installations in Haryana (13 cities)
KRISSVENT installations in Jammu and Kashmir (1 city)
KRISSVENT installations in Jharkhand (3 cities)
KRISSVENT installations in Karnataka (10 cities)
KRISSVENT installations in Kerala (7 cities)
KRISSVENT installations in Ladakh (1 city)
KRISSVENT installations in Lakshadweep (1 city)
KRISSVENT installations in Madhya Pradesh (7 cities)
KRISSVENT installations in Maharashtra (18 cities)
KRISSVENT installations in Manipur (1 city)
KRISSVENT installations in Meghalaya (2 cities)
KRISSVENT installations in Mizoram (3 cities)
KRISSVENT installations in Nagaland (4 cities)
KRISSVENT installations in Nepal (1 city)
KRISSVENT installations in Odisha (4 cities)
KRISSVENT installations in Puducherry (1 city)
KRISSVENT installations in Punjab (5 cities)
KRISSVENT installations in Sikkim (2 cities)
KRISSVENT installations in Rajasthan (6 cities)
KRISSVENT installations in Tamil Nadu (7 cities)
KRISSVENT installations in Telangana (2 cities)
KRISSVENT installations in Tripura (1 city)
KRISSVENT installations in Uttar Pradesh (15 cities)
KRISSVENT installations in Uttarakhand (1 city)
KRISSVENT installations in West Bengal (7 cities)
KRISSVENT PMSM Tech
Saves huge cost by power saving
Direct Drive Servo Motor
Highest Efficiency, Less Power Consumption
No Maintenance due to simple design
Made with rare earth Neodymium Magnets. It has 20X better life than normal magnets
Technical Specifications
| Model | Size(Dia) | Motor KW/HP | RMP | Air Volume (CMM) | Coverage (SQ.M) | Total Weight (Kg) | dBa* |
|---|---|---|---|---|---|---|---|
| KVS – 7Va | 7.3M (24ft) | 1.5 / 2.0 | 0-55 | 15,500 | 1,700 | 122 | 38 |
| KVS – 7V | 7.3M (24ft) | 1.1 / 1.5 | 0-55 | 13,000 | 1,500 | 111 | 38 |
| KVS – 6V | 6.1M (20ft) | 1.1 / 1.5 | 0-60 | 11,500 | 1,000 | 103 | 38 |
| KVS – 5V | 5.5M (18ft) | 1.1 / 1.5 | 0-70 | 11,000 | 900 | 99 | 55 |
| KVS – 4V | 4.9M (16ft) | 0.75 / 1.0 | 0-85 | 10,000 | 600 | 85 | 55 |
| KVS – 3.7V | 3.7M (12ft) | 0.37 / 0.5 | 0-85 | 5,000 | 380 | 58 | 55 |
| KVS – 3V | 3.0M (10ft) | 0.37 / 0.5 | 0-115 | 4,000 | 250 | 55 | 55 |
