Auditoriums need consistent air movement across large seating areas without creating uncomfortable drafts or excessive noise. HVLS fans for auditoriums help circulate a high volume of air at low speed, making them suitable for large halls with high ceilings.
The right fan depends on the auditorium size, ceiling height, seating layout, HVAC system, acoustic requirements, and ceiling obstructions.
Why Use HVLS Fans in Auditoriums?
HVLS fans are designed to move air across a wide area with fewer fan units.
For auditoriums, they can help:
- Improve air circulation across seating areas
- Reduce stagnant and warmer zones
- Support more consistent audience comfort
- Improve air mixing in high-ceiling spaces
- Work alongside existing HVAC systems
- Reduce the need for multiple smaller circulation fans
An HVLS fan circulates indoor air. It does not replace fresh-air ventilation or air-conditioning systems.
What Size HVLS Fan Is Suitable for an Auditorium?
There is no single fan size suitable for every auditorium. Selection should be based on the floor area, ceiling height, mounting height, seating arrangement, and available ceiling space.
KRISSVENT offers HVLS fans from 10 ft to 24 ft, allowing different sizes to be considered for small, medium, and large auditorium layouts.
| HVLS Fan Size | Typical Application |
|---|---|
| 10–12 ft | Smaller halls or restricted ceiling areas |
| 16–18 ft | Medium-sized auditoriums |
| 20–24 ft | Large, open, high-ceiling auditoriums |
Actual fan size and quantity should be confirmed after reviewing the site layout and obstructions.
Where Should an HVLS Fan Be Placed in an Auditorium?
The fan should normally be positioned to provide maximum airflow across the main occupied seating area.
Before deciding the location, check for:
- Structural beams
- Lighting systems
- Speakers
- Projectors
- HVAC ducts and diffusers
- Sprinklers
- Acoustic panels
- Balcony structures
For a simple rectangular auditorium, a central position may work well. Longer, wider, or irregular halls may require multiple fans.

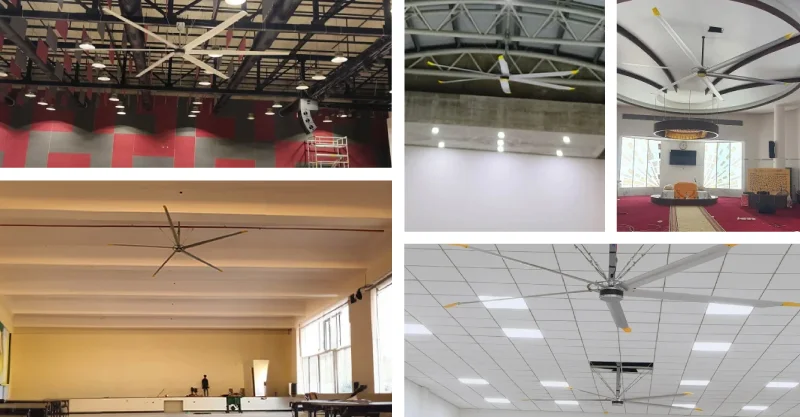

KRISSVENT HVLS Fan Installations in Auditoriums
One Large HVLS Fan or Multiple Fans?
The answer depends more on the auditorium layout than on floor area alone.
A single large HVLS fan may suit an open auditorium with a clear central ceiling area.
Multiple fans may be more suitable when the auditorium has:
- A long or wide seating layout
- Balconies
- Large ceiling obstructions
- Separate seating zones
- Irregular room geometry
The objective should be even air distribution, not simply installing the largest possible fan.
Can HVLS Fans Work With Air Conditioning?
Yes.
HVLS fans can complement an auditorium’s HVAC system by helping circulate conditioned air more evenly through the occupied space.
A practical setup is:
HVAC for temperature control + HVLS fans for air circulation
This can be particularly useful where some seating areas feel warmer or less comfortable than others.
Are HVLS Fans Suitable for Auditoriums With Balconies?
Yes, but balcony areas need separate consideration.
A ceiling-mounted HVLS fan may provide good circulation across the main hall while airflow below a deep balcony can be more limited.
For these spaces, the airflow design may require:
- HVLS fans for the main auditorium
- Existing HVAC distribution
- Additional circulation below balcony areas
The final layout should be based on the actual auditorium design.
What Should You Check Before Installation?
Before selecting an HVLS fan for an auditorium, confirm:
- Auditorium length and width
- Ceiling and mounting height
- Main seating area
- Ceiling obstructions
- Stage and balcony layout
- HVAC diffuser positions
- Acoustic requirements
- Structural mounting suitability
This information makes fan sizing and placement significantly more accurate.
Why Choose KRISSVENT HVLS Fans for Auditoriums?
KRISSVENT offers HVLS fans in different diameters for large commercial and industrial spaces.
For auditorium projects, the fan can be selected according to:
- Available ceiling height
- Seating coverage
- Required airflow
- Auditorium dimensions
- Mounting conditions
- Existing HVAC arrangement
Instead of choosing a fan only by floor area, KRISSVENT can assess the overall space and recommend a suitable fan size, quantity, and placement.
Planning an Auditorium Airflow System?
Share your auditorium dimensions and ceiling height with KRISSVENT to identify a suitable HVLS fan configuration.
+91-7624021071
FAQs
1. What size HVLS fan is best for an auditorium?
2. How many HVLS fans does an auditorium need?
3. Can HVLS fans be used with air conditioning?
4. Where should an HVLS fan be installed in an auditorium?
5. Are HVLS fans suitable for high-ceiling auditoriums?
Conclusion
HVLS fans for auditoriums can improve air circulation and audience comfort when the fan size and placement are matched to the actual hall layout.
The most important factors are auditorium size, ceiling height, seating coverage, obstructions, HVAC design, and acoustic requirements.
For the best result, select the fan based on the complete space rather than floor area alone.
